pdfHTML: Support for 'vertical-align' CSS property for inline blocks within HTML

Introduction

We are pleased to announce that we have recently added support for the vertical-align CSS property in pdfHTML. The vertical-align CSS property aligns the desired inline, or inline-block element along the vertical axis, in relation to other inline or inline-block elements. More information about this CSS property can be found on the W3docs site.

What changed?

In prior pdfHTML releases, upon conversion if the vertical-align property was used, the target element's position would revert as if the vertical-align property had not been applied.

How it works

Apply the CSS vertical-align property to an element that is either inline, or inline-block.

XML

<style>
img.b {
  vertical-align: text-top;
}
img.c {
  vertical-align: text-bottom;
}
</style>

<body>

<h2><img class="b" src="icon.jpg" > vertical-align: text-top </h2>

<h2><img class="c" src="icon.jpg" > vertical-align: text-bottom </h2>
</body>

Implement HtmlConverter as you normally would.

JAVA

        HtmlConverter.convertToPdf(new File(HtmlSRC), new File(PdfDest), converterProperties);

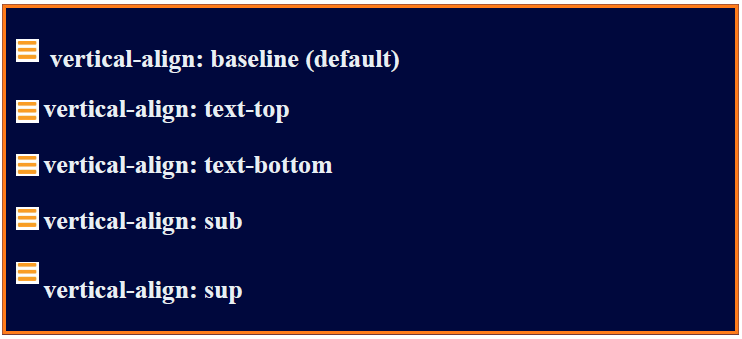

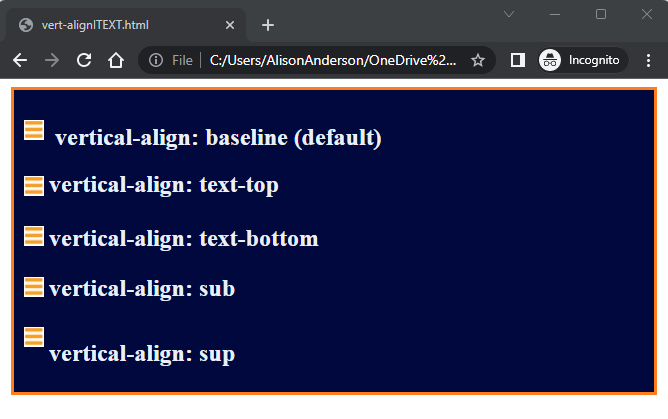

Original HTML Document
iText 7.2.5

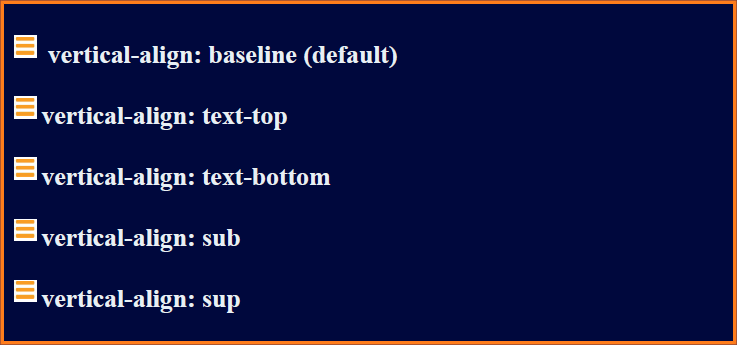

iText 7.2.4 and prior

Introduction

Original HTML Document

iText 7.2.5

iText 7.2.4 and prior
